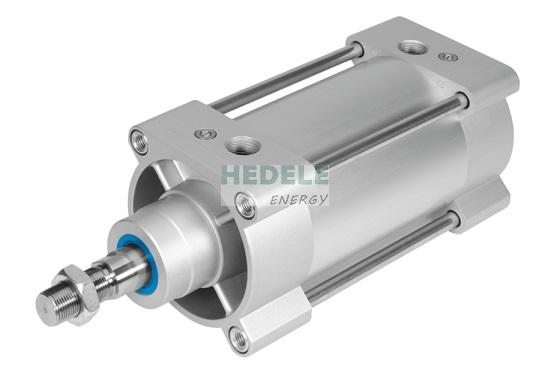

VariantsFor unlubricated operation
Bellows on bearing cap
Hard scraper
Extended male piston rod thread
Piston rod with female thread
Extended piston rod
Low friction for balancer applications
Metal scraper
With protection against rotation
Uniform, slow movement
Low friction
Through piston rod
Heat-resistant seals max. 120°C
Temperature range 0 to 150°C
Temperature range -40 to 80°C
Piston rod at one end
Operating pressure0.01 MPa ... 1.2 MPa
Operating pressure0.1 bar ... 12 bar
Mode of operationDouble-acting
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)To UK EX instructions
Explosion protectionZone 1 (ATEX)
Zone 1 (UKEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 21 (UKEX)
Zone 22 (ATEX)
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T4 Gb
Explosion ignition protection type for dustEx h IIIC T120°C Db
Explosion ambient temperature-20°C <= Ta <= +60°C
Explosion protection certification outside the EUEPL Db (GB)
EPL Gb (GB)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
VDMA24364 zone III
Ambient temperature-40 °C ... 150 °C
Impact energy in end positions1.3 J
Cushioning length22 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1682 N ... 1870 N
Additional weight per piston rod extension of 10 mm25 g
Additional weight per piston rod thread extension of 10 mm14 g
Type of mountingEither:
Via female thread
With accessories
Pneumatic connectionG3/8
Note on materialsRoHS-compliant
Material coverDie-cast aluminium, coated
Material piston sealFPM
HNBR
TPE-U(PU)
Material pistonWrought aluminium alloy
Material piston rodHigh-alloy stainless steel, hard chrome-plated
High-alloy steel
High-alloy stainless steel
