YMX

Delivery time: 2-3 weeks

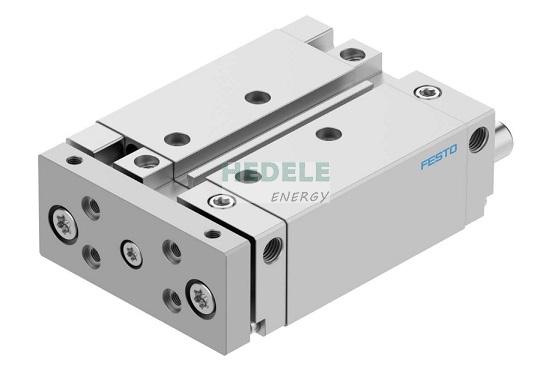

Guided drive

Technical Data

• Stroke50 mm
• Piston diameter25 mm
• Operating mode, drive unitYoke
• CushioningPneumatic cushioning, adjustable at both ends
• Mounting positionoptional
• GuidePlain-bearing guide
• DesignGuidance
• Position detectionVia proximity switch
• Operating pressure0.15 MPa ... 1 MPa
• Operating pressure1.5 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions0.3 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
• alternative connectionsSee product drawing
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material coverWrought aluminium alloy
• Material sealsNBR
• Material housingWrought aluminium alloy
• Material piston rodHigh-alloy stainless steel
