YMX

Delivery time: 2-3 weeks

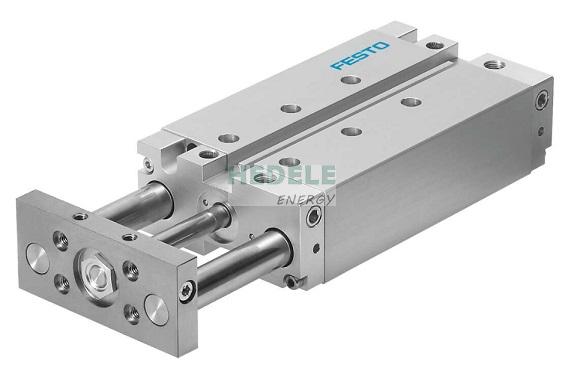

Guided drive

Technical Data

• Stroke20 mm ... 400 mm
• Piston diameter25 mm
• Operating mode, drive unitYoke
• CushioningElastic cushioning rings/plates at both ends Pneumatic cushioning, adjustable at both ends Shock absorber, soft characteristic curve
• Mounting positionoptional
• GuidePlain-bearing guide Recirculating ball bearing guide
• DesignGuidance
• Position detectionVia proximity switch
• VariantsHeat-resistant seals max. 120°C
• Operating pressure0.15 MPa ... 1 MPa
• Operating pressure1.5 bar ... 10 bar
• Mode of operationDouble-acting
• CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
• CE marking (see declaration of conformity)To UK EX instructions
• Explosion protectionZone 1 (ATEX) Zone 2 (ATEX)
• ATEX category gasII 2G
• Explosion ignition protection type for gasEx h IIC T4 Gb
• Explosion ambient temperature-20°C <= Ta <= +70°C
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC0 - No corrosion stress 2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 120 °C
• Impact energy in end positions0.15 J ... 0.3 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
• alternative connectionsSee product drawing
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material coverWrought aluminium alloy
• Material sealsNBR
• Material housingWrought aluminium alloy
• Material piston rodHigh-alloy stainless steel
