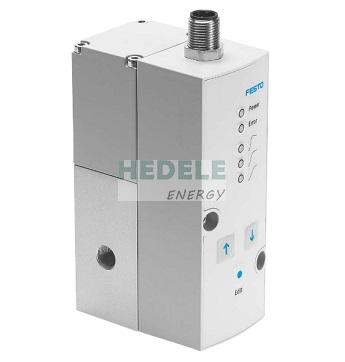

Proportional-pressure regulator

Technical Data

• Nominal size, supply6 mm
• Type of actuationElectric
• Sealing principleSoft
• Mounting positionoptional
• DesignPiloted diaphragm regulator
• Short circuit current ratingFor all electrical connections
• Safety instructionsSafety position VPPM: if the power supply cable is interrupted, output pressure is maintained unregulated.
• Symbol00995303
• Reverse polarity protectionFor all electrical connections
• Type of resetMechanical spring
• Type of pilotingPilot actuated
• Valve function3-way proportional pressure regulator
• Display typeBack-lit LCD LED
• Pressure regulation range0.02 bar ... 10 bar
• Inlet pressure 10 bar ... 11 bar
• Inlet pressure 10 MPa ... 1.1 MPa
• Standard nominal flow rate380 l/min ... 1400 l/min
• Operational voltage range DC21.6 V ... 26.4 V
• Max. current consumption300 mA
• Duty cycle100%
• Max. electrical power consumption7 W
• Residual ripple10 %
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation not possible
• ApprovalRCM trademark c UL us listed (OL)
• KC markKC-EMV
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• CE marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Certificate issuing authorityUL E322346
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature10 °C ... 50 °C
• Degree of protectionIP65
• Ambient temperature0 °C ... 60 °C
• Product weight400 g
• Linearity1 %FS
• Hysteresis0.5 %FS
• Reproducibility0.5 %FS
• Total accuracy1.25%FS
• Temperature cooefficient0.04 %/K
• Repetition accuracy FS0.5 %
• Electrical connection8-pin M12 Plugs Via sub-base
• Type of mountingEither: With through-hole With accessories
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2G1/8
• Pneumatic connection, port 3G1/8
• Note on materialsRoHS-compliant
• Material housingWrought aluminium alloy Anodised
