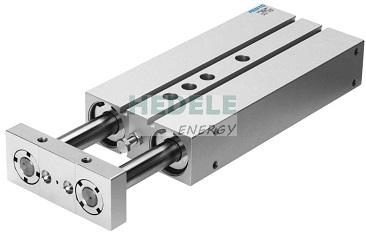

DPZ-25-25-P-A-KF

ZLL(ZXG)

DPZ-25-25-P-A-KF

delivery time:6weeks

• Stroke25 mm
• Adjustable end-position range/length10 mm
• Piston diameter25 mm
• Operating mode, drive unitYoke
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• GuideRecirculating ball bearing guide
• DesignGuidance
• Position detectionVia proximity switch
• Symbol00991249
• Operating pressure0.1 MPa ... 1 MPa
• Operating pressure1 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC0 - No corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions0.3 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke452 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke590 N
• alternative connectionsSee product drawing
• Pneumatic connectionM5
• Material coverWrought aluminium alloy
• Material sealsNBR
• Material housingWrought aluminium alloy
• Material piston rodCase-hardened steel
