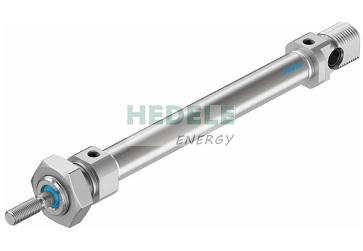

DSNU-12-80-P-A

ZLL(YMX)

DSNU-12-80-P-A

delivery time:3-4weeks

• Stroke80 mm
• Piston diameter12 mm
• Piston rod threadM6
• CushioningElastic cushioning rings/pads at both ends
• Mounting positionAny
• Conforms to standardCETOP RP 52 P ISO 6432
• Piston rod endExternal thread
• Structural designPiston Piston rod Cylinder barrel
• Position sensingFor proximity sensor
• Symbol00991217
• VariantsPiston rod at one end
• Operating pressure0.15 MPa ... 1 MPa
• Operating pressure1.5 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom classClass 6 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in the end positions0.07 J
• Theoretical force at 6 bar, retracting50.9 N
• Theoretical force at 6 bar, advancing67.9 N
• Moving mass at 0 mm stroke18.5 g
• Additional moving mass per 10 mm stroke2 g
• Basic weight with 0 mm stroke75 g
• Additional weight per 10 mm stroke4 g
• Type of mountingWith accessories
• Pneumatic connectionM5
• Note on materialsRoHS-compliant
• Cover materialWrought aluminum alloy Plain anodized
• Seals materialNBR TPE-U(PU)
• Piston rod materialHigh-alloy stainless steel
• Material of cylinder barrelHigh-alloy stainless steel
