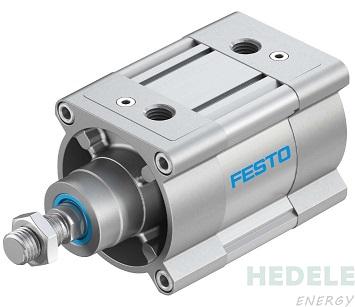

DSBC-100-325-PPVA-N3
delivery time:5-6weeks
-
Stroke1 mm ... 2800 mm
-
Piston diameter100 mm
-
Piston rod threadM20x1.5
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionoptional
-
Conforms to standardISO 15552
-
Piston-rod endMale thread
-
DesignPiston
Piston rod
Profile barrel
-
Position detectionVia proximity switch
-
Symbol00991235
-
VariantsPiston rod at one end
-
Operating pressure0.04 MPa ... 1.2 MPa
-
Operating pressure0.4 bar ... 12 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
-
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
-
Corrosion resistance class CRC2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in end positions2.5 J
-
Cushioning length31 mm
