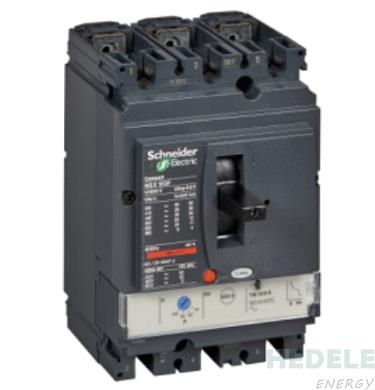

LV429631
delivery time：2 weeks
|
Product series |
Compact |
|
Product name |
Compact NSX |
|
Product series |
ComPact NSX100...250 |
|
Product short name |
NSX100F |
|
product type |
Circuit breaker |
|
Product application |
Distribution protection |
|
Number of poles |
3P |
|
Description of protective pole |
3t |
|
Rated current [in] |
80 a at 40 ° C |
|
Rated working voltage [UE] |
690 V AC 50/60 Hz |
|
Network type |
AC |
|
Network frequency |
50/60 Hz |
|
Isolation function |
Applicable according to en / IEC 60947-2 |
|
Use category |
AC class |
|
Performance level |
F 36 kA 415 V AC |
|
Release name |
TM-D |
|
Release type |
Thermomagnetic |
|
Release protection function |
LI |
|
control type |
Handle |
|
Circuit breaker mounting mode |
Fixed type |
|
Rated insulation voltage [UI] |
800 V AC 50/60 Hz |
|
Rated impulse withstand voltage [Uimp] |
8 kV |
