• PCC1301
views: 2469



( 0 reviews )

Item NO.: V029534 MOQ: 0
Weight:    0.5kgs
Package Size:
 Shipping:   Calculate Shipping Cost



delivery time:in stock

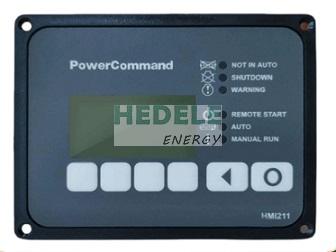

Digital generator set control PowerCommand® 1301

Description The PowerCommand® 1301 Control is a microprocessor-based generator set monitoring, metering and control system. The control provides a simple operator interface to the generator set, digital voltage regulation, digital engine speed governing, start/stop control, 12 V/24 V battery operation and generator set protective functions. The integration of all functions into a single control system provides enhanced reliability and performance compared to conventional generator set control systems. The PowerCommand 1301 generator set control is designed for mounting directly on the generator set and is suitable for use on a wide range of generator sets in non-paralleling applications. It is compatible with reconnectable alternators up to 600 VAC line-to-line and can be configured for any frequency, voltage and power connection configuration from 120-600 VAC line-to-line. It functions over a voltage range from 8 VDC to 30 VDC. The control offers a wide range of standard and optional features so custom control configurations are not needed to meet application specifications. Power for the control is derived from the generator set starting batteries.
