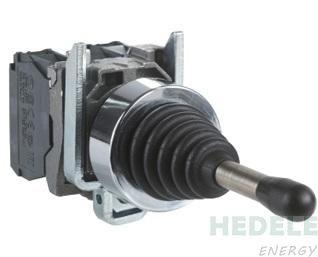

XD4PA22
delivery time:8-12weeks
| Range of product | Harmony XDA |
|---|---|
| Product or component type | Joystick controller |
| Device short name | XD4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Type of operator | Spring return to 0 position, long operating shaft 54 mm length |
| Operator position information | 3 positions |
| Operator direction information | 2 directions |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
