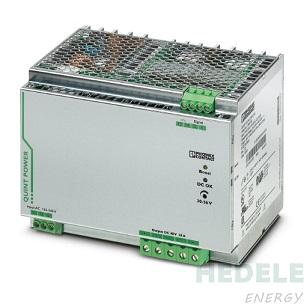

2866695 QUINT-PS/1AC/48DC/20
delivery time:in stock
| AC operation | |
| Nominal input voltage range | 100 V AC ... 240 V AC |
| 120 V DC ... 300 V DC (UL 508: ≤ 250 V DC) | |
| Input voltage range | 85 V AC ... 264 V AC |
| 90 V DC ... 300 V DC (UL 508: ≤ 250 V DC) | |
| Input voltage range AC | 85 V AC ... 264 V AC |
| Input voltage range DC | 90 V DC ... 300 V DC (UL 508: ≤ 250 V DC) |
| Electric strength, max. | 300 V AC |
| Voltage type of supply voltage | AC/DC |
| Inrush current | < 15 A (typical) |
| Inrush current integral (I2t) | < 1.6 A2s |
| AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz |
| Mains buffering time | typ. 20 ms (120 V AC) |
| typ. 22 ms (230 V AC) | |
| Current consumption | 8.7 A (120 V AC) |
| 4.5 A (230 V AC) | |
| 9.4 A (110 V DC) | |
| 4.6 A (220 V DC) | |
| Nominal power consumption | 1046 VA |
| Protective circuit | Transient surge protection; Varistor |
| Typical response time | < 0.65 s |
| Input fuse | 20 A (fast blow, internal) |
| Permissible backup fuse | B16 B25 AC: |
| Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
| Recommended breaker for input protection | 6 A ... 16 A (AC: Characteristics B, C, D, K) |
| Discharge current to PE | < 3.5 mA |
