ZZ
TIH-030M/230V
delivery time：4-8 weeks
TIH 220M/LV

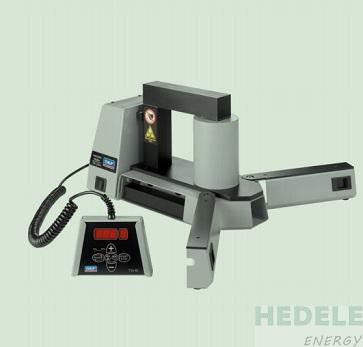

SKF Induction Heater TIH 220M (230V version)
The SKF TIH 220M is a large induction heater and is designed for the hot
mounting of bearings. This versatile heater is ideal for use on workbenches and
can easily be transported to on-site applications with the optional heater trolley
TIH T1. The heater has a convenient sliding yoke and is supplied with an
additional smaller yoke. The TIH 220M can heat bearings with a minimum bore
diameter of 60 mm and larger bearings with a maximum weight of 300 kg.
• Supplied with standard sliding yoke and one smaller yoke located in an
integrated storage compartment
• Easy and safe to use with automatic temperature control or time controlled
heating
• Automatic demagnetization reduces risk of bearing contamination
• Suitable for non-bearing applications for workpieces weighing up to 150 kg
• Automatic temperature hold function to keep the bearing hot after completion
of the heating cycle
