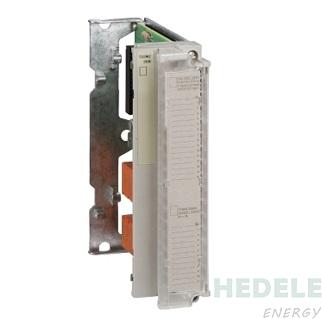

tsxdmz28dt
delivery time:in stock
input voltage limits |
>= 11 V at state 1 < 5 V at state 0 |
---|---|
Current state 0 guaranteed | <= 1.5 mA |
Current state 1 guaranteed | >= 2.5 mA |
Input impedance | 3.4 Ohm |
response time |
<= 0.5 ms from state 1 to state 0 output <= 0.5 ms from state 0 to state 1 output 0.1...7.5 ms from state 1 to state 0 input 0.1...7.5 ms from state 0 to state 1 input |
Input compatibility | 2-wire/3-wire proximity sensor |
current consumption | 132 mA |
power dissipation in W |
3.5 W by module output 0.15 W by channel output 5 W input |
Output voltage limits | 19...30 V |
Output current limits | 0.625 A |
maximum leakage current | 0.5 mA at state 0 |
[Ures] residual voltage | 0.3 V |
Load impedance ohmic | 48 Ohm |
Switching frequency | < 0.6/LI² Hz |
Output overvoltage protection | By zener diode |
Output short-circuit protection | By current limiter and electronic circuit breaker |
Reverse polarity protection | Reverse diode on power supply |
Paralleling of outputs | Yes : 2 maximum |
isolation voltage | 1500 V for 1 s |
Net weight | 0.425 kg |
