ZLL(YL)

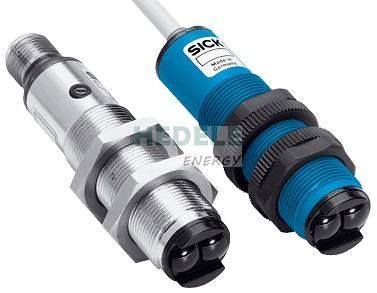

VL18-4P3640
delivery time:6-8weeks
| Device type | Photoelectric sensors |
| Dimensions (W x H x D) | 18 mm x 18 mm x 78 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 78 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0.05 m ... 3.7 m 1) |
| Sensing range | 0.05 m ... 3 m 1) |
| Focus | Approx. 2.8° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 150 mm (3 m) |
| Angle of dispersion | Approx. 2.8° |
| Adjustment | None |
