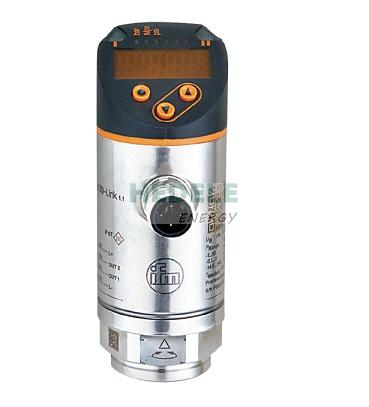

| Product characteristics | |
|---|---|
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
| Measuring range | |
| Process connection | threaded connection G 1/4 Internal thread M6 I |
| Application | |
| System | gold-plated contacts |
| Measuring element | metallic thin film cell |
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25...80 |
| Min. bursting pressure | |
| Pressure rating | |
| Vacuum resistance [mbar] | -1000 |
| Type of pressure | relative pressure |
| Electrical data | |
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Integrated watchdog | yes |
| Inputs / outputs | |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
| Outputs | |
| Total number of outputs | 2 |
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C) 250 (...40 °C)) |
| Switching frequency DC [Hz] | < 170 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Analog voltage output [V] | 0...10 |
| Min. load resistance [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Measuring/setting range | |
| Measuring range | |
| Factory setting / CMPT = 2 | |
| Set point SP | |
| Reset point rP | |
| Min. difference between SP and rP | |
| In steps of | |
| Status_B High Resolution / CMPT = 3 | |
| Set point SP | |
| Reset point rP | |
| Min. difference between SP and rP | |
| In steps of | |
| Accuracy / deviations | |
| Switch point accuracy [% of the span] | < ± 0,5 |
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation [% of the span] | < ± 0,25 |
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] | 0,2; (-25...80 °C) |
| Temperature coefficient span [% of the span / 10 K] | 0,2; (-25...80 °C) |
| Reaction times | |
| Response time [ms] | < 3 |
| Delay time programmable dS, dr [s] | 0...50 |
| Damping process value dAP [s] | 0...4 |
| Damping for the analog output dAA [s] | 0...4 |
| Max. response time analog output [ms] | 3 |
| Software / programming | |
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output |
| Interfaces | |
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | yes |
| Required master port class | A |
| Process data analog | 1 |
| Process data binary | 1 |
| Supported DeviceIDs | |
| Note | |
| Factory setting / CMPT = 2 | |
| Profiles | Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis |
| Min. process cycle time [ms] | 2.3 |
| IO-Link resolution pressure [bar] | 1 |
| IO-Link resolution pressure [MPa] | 0.1 |
| IO-Link process data (cyclical) | |
| IO-Link functions (acyclical) | application specific tag |
| Status_B High Resolution / CMPT = 3 | |
| Profiles | Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000) |
| Min. process cycle time [ms] | 3 |
| IO-Link resolution pressure [bar] | 0.1 |
| IO-Link resolution pressure [MPa] | 0.01 |
| IO-Link process data (cyclical) | |
| IO-Link functions (acyclical) | application specific tag |
| Operating conditions | |
| Ambient temperature [°C] | -25...80 |
| Storage temperature [°C] | -40...100 |
| Protection | IP 65; IP 67 |
| Tests / approvals | |
| EMC | |
| Shock resistance | |
| Vibration resistance | |
| MTTF [years] | 190 |
| UL approval | |
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data | |
| Weight [g] | 231 |
| Material | 1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L) stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) | 1.4542 (17-4 PH / 630) |
| Min. pressure cycles | 100 million |
| Tightening torque [Nm] | 25...35; (recommended tightening torque; Depends on lubrication, seal and pressure rating) |
| Process connection | threaded connection G 1/4 Internal thread M6 I |
| Restrictor element integrated | no (can be retrofitted) |
| Displays / operating elements | |
| Display | |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
