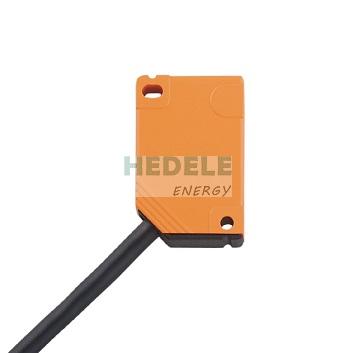

Product characteristics
|
|
Electrical design
|
PNP
|
|
Output function
|
normally open
|
|
Sensing range [mm]
|
4
|
|
Housing
|
rectangular
|
|
Dimensions [mm]
|
40 x 12 x 26
|
|
Electrical data
|
|
Operating voltage [V]
|
10...36 DC
|
|
Current consumption [mA]
|
15; (24 V)
|
|
Protection class
|
II
|
|
Reverse polarity protection
|
yes
|
|
Outputs
|
|
Electrical design
|
PNP
|
|
Output function
|
normally open
|
|
Max. voltage drop switching output DC [V]
|
2.5
|
|
Permanent current rating of switching output DC [mA]
|
250
|
|
Switching frequency DC [Hz]
|
1300
|
|
Short-circuit protection
|
yes
|
|
Type of short-circuit protection
|
yes (non-latching)
|
|
Overload protection
|
yes
|
|
Monitoring range
|
|
Sensing range [mm]
|
4
|
|
Real sensing range Sr [mm]
|
4 ± 10 %
|
|
Operating distance [mm]
|
0...3.25
|
|
Accuracy / deviations
|
|
Correction factor
|
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
|
|
Hysteresis [% of Sr]
|
1...15
|
|
Switch-point drift [% of Sr]
|
-10...10
|
|
Operating conditions
|
|
Ambient temperature [°C]
|
-25...80
|
|
Protection
|
IP 67
|
|
Tests / approvals
|
|
EMC
|
|
EN 60947-5-2
|
|
|
EN 55011
|
class B
|
|
|
MTTF [years]
|
1925
|
|
Mechanical data
|
|
Weight [g]
|
113.3
|
|
Housing
|
rectangular
|
|
Mounting
|
non-flush mountable
|
|
Dimensions [mm]
|
40 x 12 x 26
|
|
Material
|
PBT
|
|
Displays / operating elements
|
|
Display
|
|
Switching status
|
1 x LED, yellow
|
|
|
Remarks
|
|
Pack quantity
|
1 pcs.
|
|
Electrical connection
|
|
Connection
|
Cable: 2 m, PVC; 3 x 0.5 mm²
|
