ZLL(ZXG)

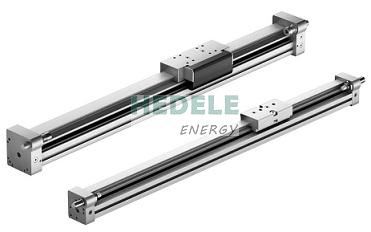

DGC-18-500-G-PPV-A
delivery time:6-8weeks
-
Stroke1 mm ... 3000 mm
-
Piston diameter18 mm
-
CushioningElastic cushioning rings/plates at both ends
Pneumatic cushioning, adjustable at both ends
Shock absorber, hard characteristic curve
Shock absorber, soft characteristic curve
-
Mounting positionoptional
-
GuidePlain-bearing guide
Basic guide
Recirculating ball bearing guide
-
Position detectionVia proximity switch
-
VariantsProtected recirculating ball bearing guide
Additional slide, standard, on left
Additional slide, standard, on right
-
Operating pressure0.2 MPa ... 0.8 MPa
-
Operating pressure2 bar ... 8 bar
-
Mode of operationDouble-acting
-
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
-
CE marking (see declaration of conformity)To UK EX instructions
-
Explosion protectionZone 1 (ATEX)
Zone 2 (ATEX)
Zone 22 (ATEX)
-
ATEX category gasII 2G
-
ATEX category dustII 3D
-
Explosion ignition protection type for gasEx h IIC T4 Gb X
-
Explosion ignition protection type for dustEx h IIIC T120°C Db X
-
Explosion ambient temperature-10°C <= Ta <= +60°C
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
-
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
-
Corrosion resistance class CRC1 - Low corrosion stress
2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Suitable for use with foodSee supplementary material information
-
Ambient temperature-10 °C ... 60 °C
-
Cushioning length16.5 mm
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke153 N
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke153 N
-
alternative connectionsSee product drawing
-
Type of mountingWith accessories
-
Note on materialsRoHS-compliant
-
Material coverWrought aluminium alloy
-
Material sealsNBR
TPE-U(PU)
