ZZ

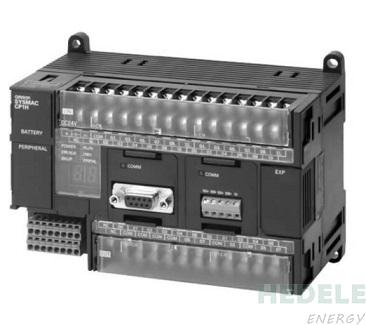

CP1H-XA40DT-D
delivery time：in stock
Brand: Omron
Product Name: High Function PLC
Model: CP1H-XA40DT-D
Memory capacity: 20K steps.
High speed counter: 100kHz 4 axis.
Pulse output: 100kHz 2 axis.
(transistor type).
Analog input: 4 points.
Analog output: 2 points.
Power supply: DC power supply.
Output form: transistor (drain type).
Input: 24 points.
Output: 16 points.
The pulse output function is equipped with 4 axes as standard, and the positioning control is powerful.
The high-speed counter function comes standard with a phase difference of 4 axes, making it easy to control multiple axes with one unit.
The interrupt input function has 8 built-in points, and the high-speed processing of instructions contributes to the high-speed improvement of the entire device.
The serial communication function can be selected from 2 ports, RS-232C, RS-485 according to the selection board.
The Ethemet communication function (implemented using the option board) communicates with the host computer via Ethernet.
Built-in analog input and output function (CP1H-XA type) with 4-point input and 2-point output.
USB peripheral port is standard.
Computational functions can also be easily run using the structured text (ST) language.
CP1W series and CJ series units can be used to expand the group.
Easy maintenance and commissioning (using palettes) can be easily performed using the LCD display setting function.
Equipped with 4-axis pulse input and output, high-function programmable controller.
The CP1H-X type can realize a 4-axis pulse output.
The CP1H-Y type can realize 1MHz pulse input and output.
CP1H-XA type with 4-axis pulse output and analog input and output.
