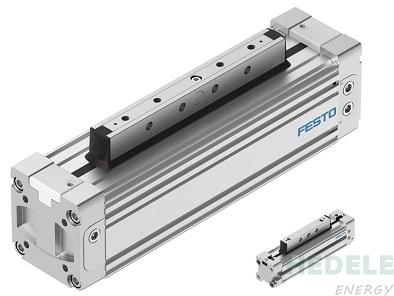

DGC-K-18-600-PPV-A-GK
delivery time:3-4weeks
-
Stroke1 mm ... 3000 mm
-
Piston diameter18 mm
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionAny
-
Position sensingFor proximity sensor
-
VariantsSupply port at both ends
Standard piston
Extended piston
-
Operating pressure0.2 MPa ... 0.8 MPa
-
Operating pressure2 bar ... 8 bar
-
Mode of operationDouble-acting
-
CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
-
UKCA marking (see declaration of conformity)acc. to UK EX instructions
-
Explosion prevention and protectionZone 1 (ATEX)
Zone 2 (ATEX)
Zone 22 (ATEX)
-
ATEX category gasII 2G
-
ATEX category for dustII 3D
-
Type of ignition protection for gasEx h IIC T4 Gb X
-
Type of (ignition) protection for dustEx h IIIC T120°C Dc X
-
Explosive ambient temperature-10°C <= Ta <= +60°C
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)1 - Low corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
For use in the food industrySee supplementary material information
-
Ambient temperature-10 °C ... 60 °C
-
Cushioning length16 mm
-
Theoretical force at 6 bar, retracting153 N
-
Theoretical force at 6 bar, advancing153 N
-
Alternative connectionsSee product drawing
-
Type of mountingWith accessories
-
Note on materialsRoHS-compliant
-
Cover materialDie-cast aluminum
-
Seals materialNBR
TPE-U(PU)
