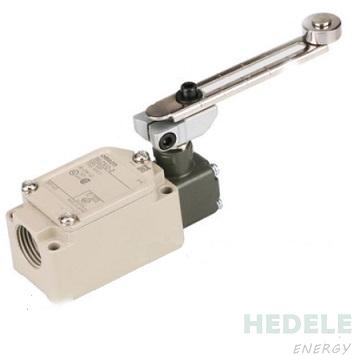

ZLL
WLCA12-2
delivery time：in stock
|
Brand |
Omron |
model |
WLCA12-2 |
Rated voltage |
220（V） |
|
Overtravel |
1 |
Working stroke |
3 |
Rated current |
10（A） |
|
structure type |
Ball swing rod type |
switch type |
1 N.O. + 1 N.C |
Scope of application |
Industrial equipment control and limit |
|
Product certification |
CCC |
contact resistance |
25（MΩ） |
insulation resistance |
100（MΩ） |
|
life |
15 million (Times) |
temperature range |
-10--80（℃） |
series |
WL |
|
3C rated voltage range |
AC above 1000V |
Shell material |
Metal |
Operating head material |
Metal plastic |
|
Product name |
Wlca12-2 limit switch |
Contact type |
1NO+1NC |
Operating ambient temperature |
-10--80℃ |
|
Reset mode |
automatic |
Degree of protection |
IP67 |
Minimum number of packages |
1 / box |
