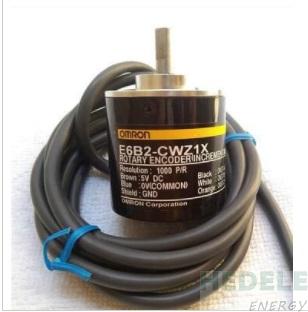

E6B2-CWZ1X 1200P / R 2M
1
  • E6B2-CWZ1X 1200P / R 2M
2
views: 19

E6B2-CWZ1X 1200P / R 2M

Rate:
0.0000/5

( 0 reviews )

Item NO.: V028355 MOQ: 0
Weight:    0.5kgs
Package Size:
 Price:
$29.40
 Qty:
      $29.40
 Shipping:   Calculate Shipping Cost

ZLL

E6B2-CWZ1X 1200P / R 2M

delivery time:in stock


classification

Incremental shaft type

diameter

φ40mm

supply voltage

DC5V±5% Ripple (P-P) less than 5%

Consumption current

Below 160mA

resolving power

1200P/R

Surge current

About 9A (0.3ms)

Output phase

A. - A, B, - B, Z, - Z phase

Control output

Output format

Linear driver output (equivalent to am26ls31)

output voltage

Vo: above 2.5V

Vs: below 0.5V

Output current

H level (IO): - 20mA

L level (is): 20mA

Origin position point

yes

Maximum response frequency

100kHz

Output phase difference

The phase difference between phase A and phase B is 90 ± 45 ° (1 / 4T ± 1 / 8t)

Output rise and fall time

Less than 0.1 µ s (conductor length less than 2m, IO = - 20mA, is = 20mA)

Starting torque

Below 0.98mn. M

Moment of inertia

one × Below 10-6 kg.m2

Maximum axle load

Radial: 30n

Axial: 20n

Maximum allowable speed

6000r/min

Ambient temperature range

When in use: - 10 ~ 70 (no icing required)

During storage: - 25 ~ 85 (no ice is required)

Ambient humidity range

When in use: 35 ~ 85% RH (but no condensation is required)

During storage: 35 ~ 85% RH (but no condensation is required)

insulation resistance

Between the whole charging part and the shell: more than 20m Ω (with DC500v megger)

Withstand voltage

Between the whole charging part and the shell: Ac500V 50 / 60Hz 1min

Vibration

Durability: 10 ~ 500Hz double amplitude 2mm or 150m / S2, three times in X, y and Z directions for 11min

to attack

Durability: 1000m / S2, 3 times in X, y and Z directions

Protective structure

IEC: IP50

Connection mode

Conductor outgoing type (conductor length: 0.5m)

texture of material

Housing: ABS

Body: Aluminum

Axis: SUS420j2

quality

After packaging: About 100g
