ZZ

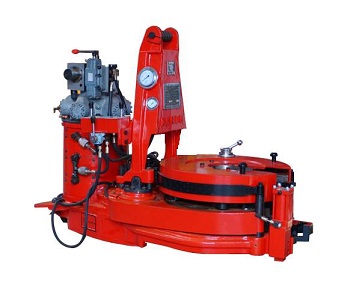

GB / T70.1-2000 screw M8 * 16
delivery time：in stock
1
17.02-01 Brake
pin
2
2
01.02-25M
pressure plate
2
3
GB5783-86
bolt M12 * 25
7
4
17.02-02
Lower case
1
5
17.02-03
idler
2
6
17.02-04
Sealing ring
6
7
GB
/ T5782-86 bolt M16 * 40
19
8
GB93-87
Washer 16
19
9
17.02-05
Pressure cap with ear
2
10
JB
/ T7940.1-95 oil cup M10 * 1
3
11
17.02-06
bushing
2
12
GB288-94
bearing 22310C
4
13
GB893.1-86
Retaining ring 110
2
14
17.02-07
Gland
1
15
17.02-08
Middle Shell
1
16
17.02-09
Gear
1
17
17.02-10
Upper shell
1
18
17.02-11
Gland
1
19
17.02-12
oil seal
1
20
17.02-13
Support sleeve
1
21
GB70-85
screw M16 * 55
7
22
17.02-14
Seal
1
23
GB5783-86
bolt M12 * 40
34
24
GB93-87
Washer 12
43
25
17.02-15
Gear shaft
1
26
17.02-16
Seal
1
27
JB982-77
Washer 27
1
28
JB
/ ZQ444-86 screw plug M27 * 2
1
29
17.02-17
Gear
1
30
17.02-18A
Support ring
2
31
17.02-19
Spline shaft
1
32
GB288-94
bearing 22112
4
33
17.02-20
bearing cap
2
34
17.02-21
Gland
1
35
17.02-22
sets
1
36
17.02-23
Idler shaft
2
37
GB1096-79
key B14 * 90
2
38
17.02-24
Foot base
2
39
GB882-86
Pin B25 * 100
1
40
GB91-86
cotter pin 4 * 45
1
41
GB882-86
Pin B10 * 32
1
42
GB91-86
cotter pin 3 * 20
1
43
17.02.01.00
threshold
1
44
17.02-25
ears
1
45
17.02-26
spring pin
1
46
17.02-27
Spring
1
47
17.02.02.00
spring sleeve
1
48
17.02.03.00
Reset support plate
1
49
01.01-01M
positioning pin
4
50
GB70-85
screw M12 * 25
4
51
GB70-85
screw M16 * 30
2
52
01.01.01.00M
positioning handle
1
53
17.02-28
Screw
1
54
17.02-29
connecting column
1
55
17.02.04.00
Clamping cylinder bracket
1
56
GB118-86
Pin 16 * 70
2
57
GB73-85
screw M10 * 16
2
58
GB5783-86
bolt M12 * 35
2
59
17.02-30
Tailplate
2
60
GB70-85
screw M12 * 35
1
61
17.02.05.00
feet
1
62
01.02-24M
screw plug M20 * 1.5
1
63
JB982-77
Washer 22
1
64
GB5782-86
bolt M12 * 35
1
65
GB6170-86
Nut M12
1
66
72.100-24A
Rushi sign
1
67
22.530-08
API signage
1
68
GB
/ T5783-2000 bolt M16 * 30
17
69
GB
/ T93-87 Washer 16
23
70
01.01-01M
positioning pin
4
71
GB
/ T6170-2000 Nut M20
1
72
GB
/ T93-87 Washer 20
1
73
GB
/ T97.1-2002 washer 20
1
74
17.01-01
Locating pin
1
75
17.01-02
Dial
1
76
17.01-03
Locating pin
1
77
GB
/ T5783-2000 bolt M12 * 20
4
78
GB
/ T93-87 Washer 12
8
79
01.01.01.00M
positioning handle
1
80
17.01-04
floating body
1
81
17.01-05
sleeve
3
82
17.01-06
Pressure cap
3
83
17.01.01.00
spring
2
84
GB
/ T65-2000 screw M16 * 25
2
85
17.01-07
Jaw plate holder
2
86
17.01-08
Plug screw
2
87
17.01-10
thickened tooth plate
8
88
17.01-09
dental plate
8
89
17.01-11
control screw
8
90
GB
/ T70.1-2000 screw M8 * 18
16
91
GB
/ T5783-2000 bolt M16 * 40
4
92
17.01-12
Jaw plate insert
8
93
17.01-13
Iron wire Φ4 * 40
4
94
17.01-14
wedge block
4
95
17.01-15
Slope
8
96
GB
/ T97.1-2002 Washer 16
2
97
GB
/ T6170-2000 Nut M12
4
98
17.01-16
Bolt M12
4
99
17.01-17
roller Φ77
4
100
17.01-18
roller Φ85
4
101
17.01-19
roller Φ102
4
102
17.01-20
Jaw plate pin
4
103
17.01-21
Y3 ″ jaw plate
2
104
17.01-22
Z2 7/8 ″ jaw plate
4
105
17.01-23
Z5 ″ jaw plate
4
106
17.01-24
T5 1/2 ″ Jaw Plate
4
107
GB
/ T827-86 sign rivet
2
108
17.01-25
Signage
1
109
GB
/ T879.1-2000 elastic cylindrical pin 8 * 30
16
110
17.01-26
flange
2
111
17.01-27
Pin
11
112
GB
/ T301-1995 bearing 51105
11
113
17.01-28
sleeve
4
114
17.01-29
washer
4
115
17.01.02.00
roller parts
11
116
17.01-30
Notched gear
1
117
JB
/ T7940.1-1995 oil cup M10 * 1
11
118
17.01-31
screw
11
119
17.01-32
Spring
4
120
17.01-33
Support pin
3
121
17.01-34
Gland
4
122
17.01.03.00
Brake disc
1
123
GB
/ T68-2000 screw M10 * 20
12
124
GB
/ T812-1988 Round nut M22 * 1.5
1
125
GB
/ T5783-2000 bolt M10 * 30
5
126
GB
/ T93-1987 Washer 10
21
127
07.02.04.03.00
pneumatic clutch
1
128
GB
/ T70.1-2000 bolt M10 * 12
8
129
17.03-01
Gear (m = 4.z = 24)
1
130
GB
/ T276-1994 bearing 6306 (72 * 30 * 19)
1
131
17.03-02
Upper flange
1
132
GB
/ T276-1994 bearing 6018 (140 * 90 * 24)
2
133
17.03-03
Support ring
1
134
17.03.01.00
upper ring gear
1
135
17.03-04
Oil motor flange
1
136
17.03.02.00
small airbag shell
1
137
GB
/ T5783-2000 bolt M10 * 15
12
138
GB
/ T894.1-1986 retaining ring 28
6
139
E01.00
Pneumatic tire clutch 300 * 100
2
140
17.03-05
Upper planet wheel
3
141
GB
/ T5783-2000 bolt M10 * 1 * 15
24
142
JB
/ T3588-1994 Rolling Bearing RNAV4004 (42 * 28.7 * 22)
12
143
17.03-06
Flange gear (m = 4.z = 20)
1
144
17.03-07
Pin
3
145
17.03-08
Gear (m = 4.z = 20)
1
146
GB
/ T894.1-1986 Retaining ring 85
2
147
17.03-09
Pin
3
148
17.03-10
Lower planet wheel (m = 4.z = 22)
3
149
17.03-11
Positioning sleeve
3
150
17.03-12
Lower planet wheel washer
3
151
17.03-13
Lower flange
1
152
17.03-14
Lower inner ring gear (m = 4.z = 60)
1
153
GB
/ T93-1987 Washer 8
8
154
GB
/ T70.1-2000 screw M8 * 16
8
155
17.03-15
Lower support ring
1
156
04.06-02M
washer
2
157
GB
/ T5783-2000 bolt M10 * 25
8
158
17.04-01
Rear cylinder head
1
159
JB
/ ZQ4224-1997 Ring 120 * 3.1
1
160
GB344-1964
steel wire φ4 * 358
1
161
JB
/ ZQ4264-1997 Yx seal ring D100
1
162
GB
/ T894.1-1986 Retaining ring 35
1
163
17.04-02
Card key cap
1
164
17.04-03
Card key
1
165
JB
/ ZQ4224-1997 O-ring 35 * 3.1
1
166
17.04-04
Piston
1
167
17.04-05
Piston rod
1
168
17.04.01.00
cylinder
1
169
17.04-06
Guide sleeve
1
170
JB
/ ZQ4265-1997 Yx seal ring d40
1
171
JB
/ ZQ4224-1997 O-ring 100 * 3.1
1
172
17.04-07
Card key
1
173
17.04-08
Block
1
174
GB
/ T894.1-1986 Retaining ring 90
1
175
Q
/ ZB336-79 Dust ring 40
1
176
01.04-10M
fork head
1
177
GB
/ T882-1986 Pin B30 * 95
1
178
GB
/ T91-2000 cotter pin 6.3 * 40
1
179
01.05-14M
Adjusting screw M24
2
180
GB
/ T6170-2000 Nut M24
2
181
01.05-16M
adjusting screw M20
2
182
GB
/ T6170-2000 Nut M20
2
183
01.05-19M
pipe plug 20
1
184
GB
/ T5781-2000 bolt M8X15
8
185
GB93-87
Washer 6
6
186
01.910.00A
fixed seat
1
187
17.05.01.00A
lifting liquid cylinder
1
188
17.05-01A
back cover
1
189
Y60-I
barometer (0-1.6MPa)
1
190
01.08.02.00MA
barometer connector
1
191
17.05.02.00A
boom stand
1
192
YK100-Ⅲ
seismic pressure gauge
1
193
47.000-06
hydraulic gauge connector
1
194
19.300-04
Gasket 18
1
195
20.13-07
Copper
9
196
JB1885-77
Hose connector A6Ⅱ-1500
2
197
GB818-85
screw M5X12
3
198
JB982-77
combination washer 14
1
199
17.05-02A
Right Angle Connector
1
200
GB93-87
Washer 12
4
201
GB
/ T70.1-2000 screw M12 * 70
4
202
FD16KA10
/ B30 FD type balance valve
1
203
JB1885-77
Hose connector A6Ⅱ-1200
1
204
20.13-01
Connector
2
205
17.05-03A
valve block
1
206
17.05-04A
Valve block electrode
1
207
JB1885-77
Hose connector A6Ⅱ-450
1
208
17.05-05A
right angle connector
1
209
GB
/ T5783-2000 bolt M10 * 20
8
210
GB93-87
Washer 10
8
211
17.05-06A
Limit strip
2
212
PC6-02
Straight terminal connector
1
213
N0604B
* 300 nylon hose
1
214
17.05-07A
Signage
1
215
GB827-86
rivet 3 * 6
8
216
17.05-08A
transition joint
1
217
GB812-88
round nut M24 * 1.5
1
218
PL6-02
Right Angle Terminal Connector
1
219
17.05-03
sales @ 40 * 275
1
220
17.05-02
Spiral rod
1
221
17.05-04
washer
1
222
GB91-86
cotter pin 6.3 * 45
1
223
17.05.01-01A
U-shaped cylinder head
1
224
17.05.01-02A
Limit sliding sleeve
1
225
17.05.01-03A
cylinder
1
226
17.05.01-04A
Lower cylinder head
1
227
01.920-05
Guide sleeve
1
228
JB
/ ZQ4224-97 O-ring D75 * 5.7
1
229
01.09.02-10
card key for hole
1
230
01.09.02-11
retaining ring
1
231
JB
/ ZQ4265-97 Yx seal ring d40
1
232
GB894.2-86
retaining ring 65
1
233
JB
/ ZQ6657-93 Dust ring 40
1
234
17.05.01.01.00A
piston rod
1
235
GB
/ T5782-2000 bolt M14X90
4
236
01.09.02-05A
piston
1
237
JB
/ ZQ4224-97 O-ring D35 * 3.1
1
238
GSF0750
square ring for hole 75 * 6.3
2
239
GST5906
Guide ring 75 * 6.3
2
240
JB
/ ZQ4224-97 O-ring D75 * 3.1
1
241
GB93-87
Washer 14
8
242
GB
/ T5783-2000 bolt M14X45
4
243
01.09.02-03
card key
1
244
01.09.02-02
card key cap
1
245
GB894.2-86
Retaining ring 35
1
246
17.06.01.00
brake band
2
247
17.06-01
Connecting rod
4
248
GB5783-1986
bolt M12 * 35
4
249
17.06-02
Connection board
1
250
01.06-04M
Square head bolt (left)
1
251
01.06-05M
sliding sleeve
1
252
01.06-06M
spring
1
253
01.06.02.00M
tube
1
254
01.06-07M
Square head bolt (right)
1
255
17.06-03
column
2
256
17.06-04
Top cover
2
257
GB882-86
Pin 22 * 80
4
258
GB91-86
4 * 40
4
259
GB96-85
washer 12
2
260
01.06-08M
set screw
1
261
GB5781-86
bolt M5 * 10
4
262
GB93-87
Washer 5
4
263
17.07.01.00A
left guard
1
264
17.07-04
Solder bump
2
265
17.07.02.00A
right guard
1
266
DBD-H-20K-20
overflow valve NG20
1
267
34SH-B20H-T
Manual directional valve
1
268
19.810-03
Signage
1
269
GB
/ T827-1986 Rivet 2X4
4
270
34SM-B20H-T
Manual directional valve
1
271
01.900-02
signage
1
272
17.08-01A
valve plate
1
273
24.400-03
Connector NPT1 / 4-M14X1.5
6
274
24.600-09
copper pad @ 10.5X @ 6X2.5
6
275
JB
/ 1885-1977 6Ⅱ-1000
3
276
17.03-04A
oil motor flange
1
277
19.720.00
Valve assembly
1
278
A01.5200.00
trachea connector
13
279
JB
/ 1885-1977 hose joint 19Ⅲ-750
1
280
JB
/ T4224-1997 O-ring 24X3.1
2
281
07.700-04A
Straight connector (NPT3 / 4-M30X1.5)
2
282
01.08.12-03M
leaking oil connector (NPT1 / 4-M18X1.5)
3
283
07.700-04B
Straight connector (NPT3 / 4-M36X2)
2
284
A01.510-06A
Short right angle square connector (NPT3 / 4-NPT3 / 4)
2
285
JB1885-1977
Hose connector 22Ⅰ-800
1
286
JB
/ ZQ4224-1997 O-ring 30X3.1
2
287
JB
/ ZQ4447-1986 screw plug NPT1 / 2
13
288
JM11-F0.45F1H
hydraulic motor
1
289
17.08-02A
Straight connector
1
290
01.08.12-02M
connector body
1
291
JB
/ 982-1977 washer 18
2
292
01.08.12-01M
articulated joint M18X1.5
1
293
01.08.08.01.00M
two-way connector body (M22X1.5-M30X1.5)
1
294
17.09-01
Straight connector (M12X1.5-M22X1.5)
1
295
01.08.08.00M
tee connector body
1
296
19.820-03A
connector (NPT1-NPT11 / 4)
1
297
20.11.50.00
11/4 self-sealing joint
1
298
19.820-02A
Connector NPT1-NPT1
1
299
20.11.40.00
1 Self-sealing joint
1
300
GB
/ T70.1-2000 screw M12X40
2
301
GB
/ T93-1987 Washer 12
2
302
17.08-03A
welding plate
1
303
19.820-01A
Connect the valve plate
1
304
01.08.08-07M
ball head
1
305
QF514
Quick Bleed Valve (M30X1.5-M18X1.5)
3
306
GB
/ T5783-2000 bolt M16X40
2
307
GB
/ T6170-1986 Nut M16
2
308
GB
/ T93-1987 Washer 16
2
309
A01.5000-003
Right angle connector M18X1.5-NPT1 / 2
8
310
01.08.01-05M
right angle connector
1
311
02-01M
back cover
1
312
JB
/ ZQ4224-1997 O-ring seal 120 * 3.1
2
313
GB
/ T6170-1986 Nut M30 * 2
1
314
GB
/ T91-2000 cotter pin 6.3 * 60
1
315
02-02M
big piston
1
316
JB
/ ZQ4264-1997 Yx seal ring D120
2
317
02-03M
pressure sleeve
1
318
02-04M
small piston
1
319
JB
/ ZQ4264-1997 Yx seal D75
2
320
02-05M
sets
1
321
17.10.01-01
outer cylinder liner
1
322
17.10.01-02
Inner cylinder liner
1
323
17.10.01-03
piston rod
1
324
02-09M
front cover
1
325
02-10M
shaft sleeve
1
326
JB
/ ZQ4265-1997 Yx seal ring d100
1
327
02-11M
Spacer
1
328
HG4-332-1966
J-shaped sealing ring 100
1
329
GB
/ T5782-2000 bolt M8 * 25
6
330
GB
/ T93-1987 Washer 8
6
331
GB
/ T70.1-2000 screw M8 * 16
4
332
GB
/ T6173-2000 nut M36 * 2
1
333
02-12M
fork head
1
334
02-13M
Gland
1
335
HG4-332-1966
J-shaped sealing ring 40
1
336
02-14M
Spacer
1
337
JB
/ ZQ4265-1997 Yx seal ring d40
1
338
02-15M
Gland
1
339
02-16M
front box
1
340
JB
/ ZQ4224-1997 O-ring seal 75 * 5.7
1
341
02-17M
shaft sleeve
1
342
JB
/ ZQ4224-1997 O-ring 40 * 3.1
1
343
02-18M
back box
1
344
GB
/ T6170-2000 Nut M20
8
345
GB
/ T93-1987 Washer 20
8
346
17.10.01-04
Screw M20
4
347
JB
/ ZQ4224-1997 O-ring seal 95 * 3.1
1
348
02-20M
sets
1
