SMC,CDM2C40-600,CYLINDER
delivery time: 4-5 weeks
Japanese SMC cylinder cdm2c40-600z
Internal magnetic ring D internal magnetic ring
Form - pneumatic
Installation form C single earring type
Cylinder diameter 40mm
Type of through thread - Rc
Cylinder stroke 600 600mm
Cylinder tracking number - no protective cover, rubber buffer
Double trip mark - no double trip mark
Cylinder stroke 2 - no cylinder stroke 2
Cylinder tracking no. 2 - no protective cover, rubber cushioning
Magnetic switch type - non-magnetic switch
Number of magnetic switches - 2 or none
Magnetic switch mounting - none
Brand: Japan SMC
Class: standard cylinders
Series :CM2 series
Bore: 20-40 mm
Model: CDM2C40-600 - z

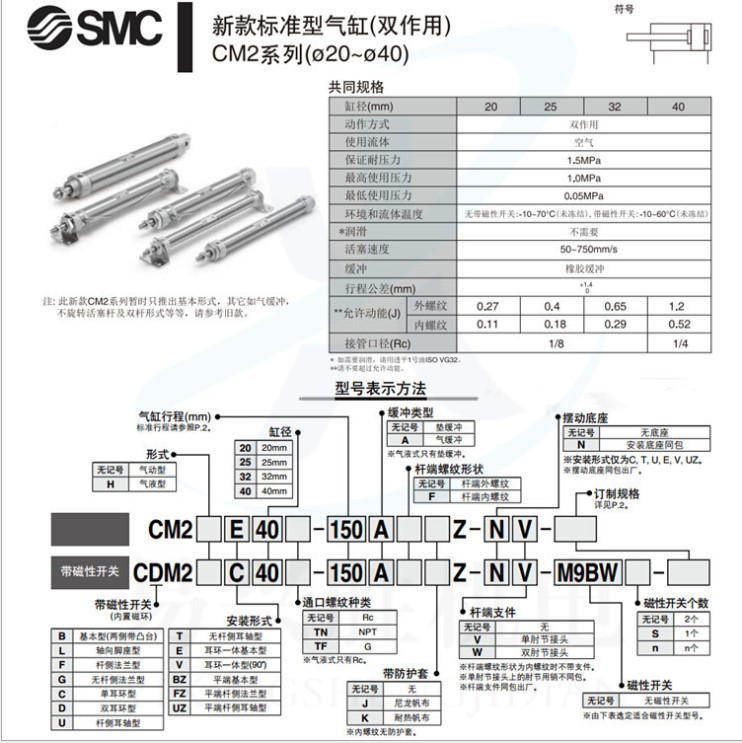

Product specifications:
Cylinder diameter: 20MM, 25MM, 32MM, 40MM
Action mode: double action
Use circulation: air
Guaranteed pressure resistance: 1.5mpa
Maximum operating pressure: 1.0MPa
Minimum operating pressure: 0.05mpa
Ambient and fluid temperature: without magnetic switch: -10 to 70 ° c (not frozen);Magnetic switch: -10 to 60 degrees (not frozen)
Lubrication: not required
Piston speed: 50-750 mm /S
Travel tolerance: + 1.4mm to 0MM
Buffer type: rubber buffer
Permitted kinetic energy external threads: 0.27, 0.4, 0.64, 1.2
Permitted kinetic energy internal threads: 0.11, 0.18, 0.29, 0.52
Takeover caliber: 1/8 1/4
Magnetic switch model: d-a93l/d-m9bl/d-m9nl
Model representation method:
C [D] M2 [B] [20] - [50] Z
-- --- --- ---
1. Built-in magnetic ring
No mark: no magnetic ring
D: built-in magnetic ring
2. Installation form
B: the basic model
3, cylinder diameter
20 mm
25 mm
32 mm
40 mm
4,
25 mm
50 mm
75 mm
100 mm
125 mm
150 mm
200 mm
250 mm
300 mm
To 1000 mm
Examples of orders:
Required cylinder diameter: 32, stroke: 200, built-in magnetic ring;Correct model: cdm2b32-200z
Required cylinder diameter: 40, travel: 300, need magnetic switch, foot mount type;Correct model: cdm2b40-300z
Model: cm-l040b;Magnetic switch: d-m9bl;Switch mounting code: bm5-040
Product advantages:
1. Standardization of internal thread at rod end
2, magnetic switch maneuverability is improved, easy to adjust the position
3. Set with single earring type and trunnion type swing base
4. Set the type of rod end mounting parts and swing base mounting parts (save the time of ordering cylinder and mounting parts respectively)
5. Magnetic switch (cdm2-z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK, CDM2□P, CDBM2)
