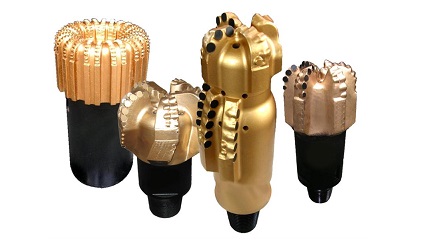

PDC drill bit
| Short parabolic shape, 4-8 blade design. Φ13, Φ13.44, Φ19.05mm composite sheet, encrypted cloth teeth. | |||||
| Suitable for all kinds of hardness non-abrasive formations, can be used with rotary drill or downhole motor. | |||||
| Parameters Table | |||||
| Bit size Size | Number of nozzles Nozzle Qty | Gage Length (mm) | API Joint | Cutter Size | |
| In | mm | ||||
| Feb-61 | 165.1 | 4 | 60 | 31/2REG | Φ19.05 |
| 8 | 203 | 4 | 80 | 41/2IF | Φ13.44 |
| Feb-81 | 215.9 | 4 | 80 | 41/2IF | |
| Feb-91 | 241.3 | 6 | 100 | 65/8REG | |
| 115/8 | 295 | 8 | 100 | 65/8REG | |
| 121/4 | 311 | 8 | 100 | 65/8REG | |
