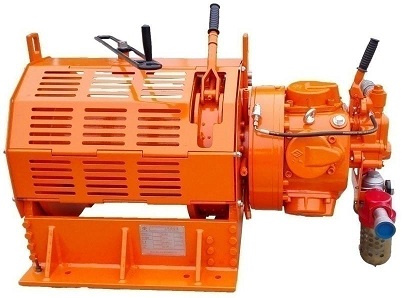

JQHS-50×20X pneumatic winch
Delivery time 20days
JQHS-50×20X pneumatic winch is a new type of pneumatic winch with built-in planetary transmission mechanism and full disc brake. It is especially suitable for explosive and flammable gas places such as oil fields (including ocean), geological drilling and mining. Traction or lifting work.
The characteristics of JQHS-50×20X air winch are as follows:
It can realize stepless speed regulation of forward and reverse, which is easy and convenient to operate;
Excellent explosion-proof performance, safe and reliable work, especially suitable for places with flammable and explosive gases;
It has strong environmental adaptability and can work safely in harsh environments such as dusty, humid, rainy and snowy weather;
The starting torque is large and can be started with load;
Combined protection structure, which can be applied to different rope exit directions.
| item | specificaton |
| model | JQHS-50×20X |
| brake | Hand brake and disc brake |
| Fouth Max lifting force（lb） | 11240 |
| First Max lifting force（lb） | 15737 |
| Max lifting speed（ft/s） | 1.09 |
| Rated power（H.P） | 21 |
| Air pressure（ psi） | 116 |
| Air consumpiton（scfm） | 653 |
| Wire capacity（ft）） | 722 |
| diameter（in） | φ0.787 |
| overrall dimension（in） | 58×34×32 |
| weight（lb） | 2335 |
