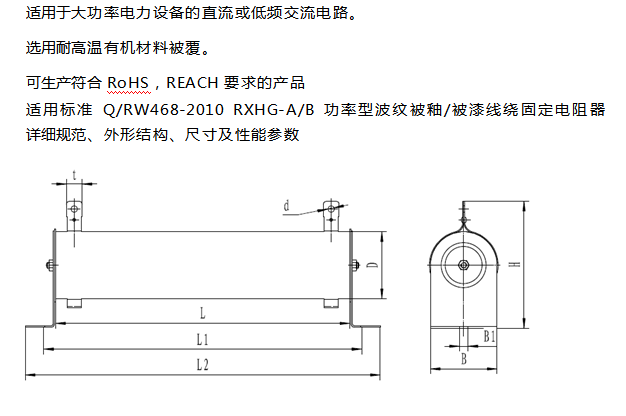

| Model | Power (W) | Resistance rangeΩ | Dimensions(mm) | |||||||||
| L | L1 | L2 | ⌀D | H | T | ⌀D | B1 | B | Weight(g） | |||
| RX20B-80 | 80 | 15-20K | 140 ± 2 | 162 ± 3 | 174 ± 4 | 32 ± 3 | 76 ± 3 | 12 ± 1 | 5.5 | 6.5 | 28 | 133 |
| RX20B-100 | 100 | 20-2.4K | 170 ± 2 | 192 ± 3 | 204 ± 4 | 32 ± 3 | 76 ± 3 | 12 ± 1 | 5.5 | 6.5 | 28 | 160 |
| RX20B-150 | 150 | 24-3K | 215 ± 2 | 237 ± 3 | 249 ± 4 | 32 ± 3 | 76 ± 3 | 12 ± 1 | 5.5 | 6.5 | 28 | 205 |
| RXG20B-200 | 200 | 33-3.6 | 266 ± 2 | 288 ± 3 | 300 ± 4 | 32 ± 3 | 76 ± 3 | 12 ± 1 | 5.5 | 6.5 | 28 | 255 |
| RXG20B-300 | 300 | 39-4.3 | 266 ± 2 | 288 ± 3 | 302 ± 4 | 36 ± 3 | 88 ± 3 | 12 ± 1 | 5.5 | 6.5 | 34 | 410 |
| RXG20B-400 | 400 | 51-6.8 | 250 ± 2 | 280 ± 3 | 302 ± 4 | 54 ± 3 | 102 ± 3 | 15 ± 1 | 6.5 | 7 | 48 | 770 |
| RXG20B-500 | 500 | 62-10 | 300 ± 2 | 330 ± 3 | 352 ± 4 | 54 ± 3 | 102 ± 3 | 15 ± 1 | 6.5 | 7 | 48 | 1040 |
| RXG20B-1000 | 1000 | 82-10 | 300 ± 3 | 332 ± 4 | 362 ± 4 | 72 ± 3 | 128 ± 3 | 16 ± 1 | 6.5 | 9 | 68 | 3000 |
| RXG20B-1500 | 1500 | 130-10 | 420 ± 3 | 452 ± 4 | 482 ± 4 | 72 ± 3 | 128 ± 3 | 16 ± 1 | 6.5 | 9 | 68 | 4000 |
| RXG20B-2000 | 2000 | 160-10 | 520 ± 3 | 552 ± 4 | 582 ± 4 | 72 ± 3 | 128 ± 3 | 16 ± 1 | 6.5 | 9 | 68 | 5000 |
| RXG20B-2500 | 2500 | 200-10 | 600 ± 3 | 532 ± 4 | 662 ± 4 | 72 ± 3 | 128 ± 3 | 16 ± 1 | 6.5 | 9 | 68 | 6000 |
