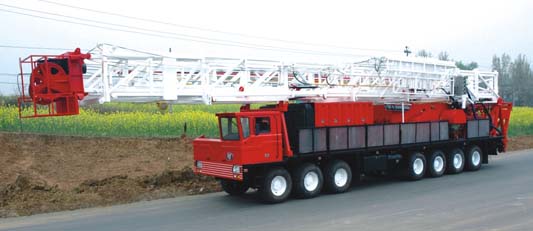

MODEL |
XJ900(XJ60) |
|
Nominal service depth(ft)（27/8″EUE tubing） |
13000 |
|
Nominal workover depth (ft)（27/8″DP） |
10500 |
|
Max. hook load (lbf) |
202320 |
|
Rated hook load (lbf) |
134880 |
|
Engine model |
C9 |
|
Engine power (hp) |
350 |
|
Transmission type |
Hydraulic + mechanical |
|
Traveling system |
4×3 |
|
Effective height of mast (ft) |
95,102 |
|
Drilling line diameter (in) |
1 |
|
Hook speed (ft/s) |
0.66～5.7 |
|
Approaching/departure angle |
23°/16° |
|
Min. ground clearance (in) |
14 |
|
Max. gradient ability |
30% |
|
Min. turning diameter (ft) |
92 |
|
Rotary table model |
ZP90 |
|
Traveling block model |
YG90 |
|
Swivel model |
SL110 |
|
Overall moving dimension (ft) |
54.8×10×13.5 |
|
Main unit mass (lb) |
93000 |
