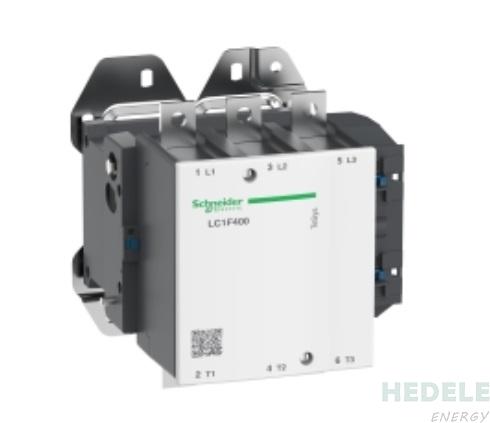

LC1F400G7
delivery time:6-8weeks
| Range | TeSys |
|---|---|
| Range of Product | TeSys F |
| Product or Component Type | Contactor |
| Device short name | LC1F |
| Contactor application |
Motor control Resistive load |
| utilisation category |
AC-4 AC-3 AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage |
<= 1000 V AC 50/60 Hz <= 460 V DC |
| [Uc] control circuit voltage | 120 V AC 40...400 Hz |
| [Ie] rated operational current |
500 A 104 °F (40 °C)) <= 440 V AC AC-1 400 A 131 °F (55 °C)) <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 500 A 104 °F (40 °C) |
| Rated breaking capacity | 3200 A IEC 60947-4-1 |
| [Icw] rated short-time withstand current |
3600 A 104 °F (40 °C) - 10 s 2400 A 104 °F (40 °C) - 30 s 1700 A 104 °F (40 °C) - 1 min 1200 A 104 °F (40 °C) - 3 min 1000 A 104 °F (40 °C) - 10 min |
| Associated fuse rating |
400 A aM <= 440 V 500 A gG <= 440 V |
| Average impedance | 0.26 mOhm - Ith 500 A 50 Hz |
| [Ui] rated insulation voltage |
1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Power dissipation per pole |
65 W AC-1 42 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW |
75 kW 400 V AC 50/60 Hz AC-4) 200 kW 380...400 V AC 50/60 Hz AC-3) 220 kW 415 V AC 50/60 Hz AC-3) 250 kW 440 V AC 50/60 Hz AC-3) 257 kW 500 V AC 50/60 Hz AC-3) 280 kW 660...690 V AC 50/60 Hz AC-3) 185 kW 1000 V AC 50/60 Hz AC-3) 110 kW 220...230 V AC 50/60 Hz AC-3) |
| Control circuit voltage limits |
Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.3...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 1075 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Hold-in power consumption in VA | 15 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
| Maximum operating rate | 2400 cyc/h 131 °F (55 °C) |
| Operating time |
40...65 ms closing 100...170 ms opening |
| Connections - terminals |
Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end Power circuit bar 2 30 x 5 mm Power circuit lugs-ring terminals 2 0.23 in² (150 mm²) Power circuit bolted connection |
| Tightening torque |
Control circuit 10.62 lbf.in (1.2 N.m) Power circuit 309.78 lbf.in (35 N.m) |
| Mounting Support | Plate |
| Heat dissipation | 14 W |
| motor power range |
110…220 kW 480…500 V 3 phase 110…220 kW 380…440 V 3 phase 110…220 kW 200…240 V 3 phase 250…500 kW 480…500 V 3 phase |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 120 V AC standard |
| Standards |
JIS C8201-4-1 EN 60947-1 IEC 60947-1 EN 60947-4-1 IEC 60947-4-1 |
| Product Certifications |
ABS DNV RMRoS LROS (Lloyds register of shipping) UL BV CB CSA RINA UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC 40...400 Hz |
